How To Configure Inference Batcher#

Introduction#

Inference batching can be enabled to increase inference request throughput at the cost of higher latencies. The configuration of the inference batcher depends on the model server used in the deployment.

Inference batching is not supported for vLLM deployments.

Web UI#

Step 1: Create new deployment#

If you have at least one model already trained and saved in the Model Registry, navigate to the deployments page by clicking on the Deployments tab on the navigation menu on the left.

Once in the deployments page, you can create a new deployment by either clicking on New deployment (if there are no existing deployments) or on Create new deployment it the top-right corner. Both options will open the deployment creation form.

Step 2: Go to advanced options#

A simplified creation form will appear including the most common deployment fields from all available configurations. Inference batching is part of the advanced options of a deployment. To navigate to the advanced creation form, click on Advanced options.

Advance options — Advanced options. Go to advanced deployment creation form

Step 3: Configure inference batching#

To enable inference batching, click on the Request batching checkbox.

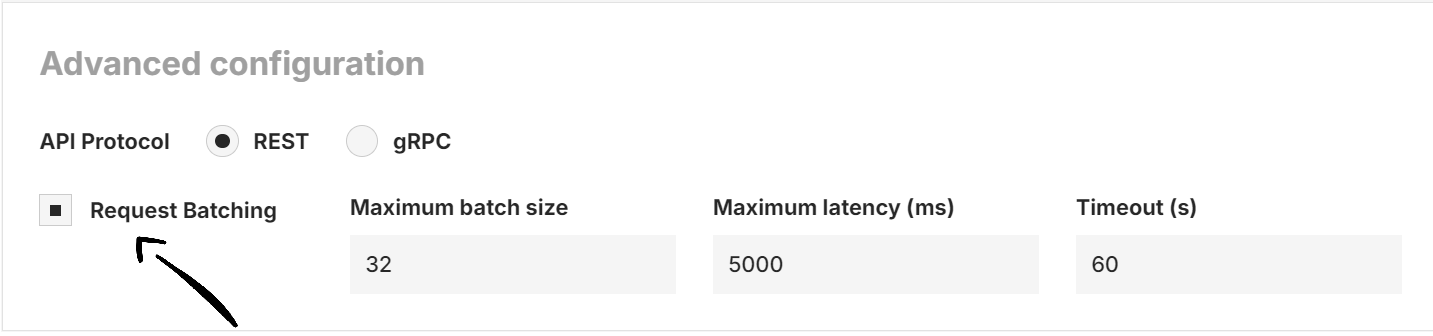

Inference batcher in advanced deployment form — Inference batching configuration (default values)

If your deployment uses KServe, you can optionally set three additional parameters for the inference batcher: maximum batch size, maximum latency (ms) and timeout (s).

Timeout parameter

The timeout parameter sets the request timeout in seconds for the inference batcher. If a batch is not filled within this time, the available requests are sent as a partial batch.

Once you are done with the changes, click on Create new deployment at the bottom of the page to create the deployment for your model.

Code#

Step 1: Connect to Hopsworks#

Python

import hopsworks


project = hopsworks.login()

# get Hopsworks Model Registry handle
mr = project.get_model_registry()

# get Hopsworks Model Serving handle
ms = project.get_model_serving()

Step 2: Define an inference logger#

Python

from hsml.inference_batcher import InferenceBatcher


my_batcher = InferenceBatcher(
    enabled=True,
    # optional
    max_batch_size=32,
    max_latency=5000,  # milliseconds
    timeout=5,  # seconds
)

Step 3: Create a deployment with the inference batcher#

Python

my_model = mr.get_model("my_model", version=1)

my_model.deploy(inference_batcher=my_batcher)

API Reference#

InferenceBatcher
