How To Configure Inference Logging#

Introduction#

Once a model is deployed and starts making predictions as inference requests arrive, logging model inputs and predictions becomes essential to monitor the health of the model and take action if the model's performance degrades over time.

Hopsworks supports logging both inference requests and predictions as events to a Kafka topic for analysis.

Inference logging is not supported for vLLM deployments.

Logging modes

Three logging modes are available:

Mode	Logger Mode	Description
ALL	`all`	Log both inputs and outputs
PREDICTIONS	`response`	Log model outputs only
MODEL_INPUTS	`request`	Log model inputs only

Kafka topic requirements

The Kafka topic must use the inferenceschema subject. Schema v4+ is required for KServe topics.

Web UI#

Step 1: Create new deployment#

If you have at least one model already trained and saved in the Model Registry, navigate to the deployments page by clicking on the Deployments tab on the navigation menu on the left.

Once in the deployments page, you can create a new deployment by either clicking on New deployment (if there are no existing deployments) or on Create new deployment it the top-right corner. Both options will open the deployment creation form.

Step 2: Go to advanced options#

A simplified creation form will appear including the most common deployment fields from all available configurations. Inference logging is part of the advanced options of a deployment. To navigate to the advanced creation form, click on Advanced options.

Advance options — Advanced options. Go to advanced deployment creation form

Step 3: Configure inference logging#

To enable inference logging, choose CREATE as Kafka topic name to create a new topic, or select an existing topic. If you prefer, you can disable inference logging by selecting NONE.

If you decide to create a new topic, select the number of partitions and number of replicas for your topic, or use the default values.

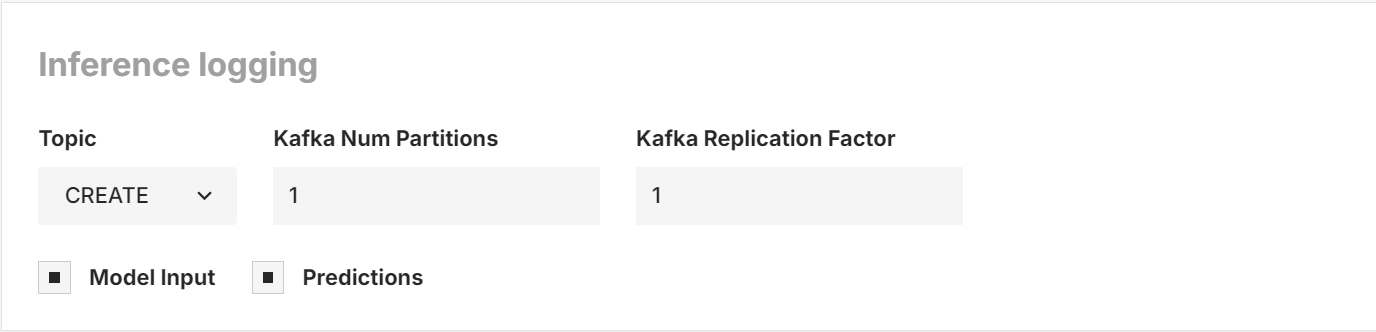

Inference logger in advanced deployment form — Inference logging configuration with a new kafka topic

If the deployment is created with KServe enabled, you can specify which inference logs you want to send to the Kafka topic (i.e., MODEL_INPUTS, PREDICTIONS or both)

Once you are done with the changes, click on Create new deployment at the bottom of the page to create the deployment for your model.

Code#

Step 1: Connect to Hopsworks#

Python

import hopsworks


project = hopsworks.login()

# get Hopsworks Model Registry handle
mr = project.get_model_registry()

# get Hopsworks Model Serving handle
ms = project.get_model_serving()

Step 2: Define an inference logger#

Python

from hsml.inference_logger import InferenceLogger
from hsml.kafka_topic import KafkaTopic


new_topic = KafkaTopic(
    name="CREATE",
    # optional
    num_partitions=1,
    num_replicas=1,
)

my_logger = InferenceLogger(kafka_topic=new_topic, mode="ALL")

Use dict for simpler code

Similarly, you can create the same logger with:

my_logger = InferenceLogger(kafka_topic={"name": "CREATE"}, mode="ALL")

Step 3: Create a deployment with the inference logger#

Python

my_model = mr.get_model("my_model", version=1)

my_model.deploy(inference_logger=my_logger)

API Reference#

InferenceLogger

Topic schema#

Model inputs and predictions are logged in separate events, sharing the same requestId field.

Kafka topic schema

{
    "fields": [
        { "name": "servingId", "type": "int" },
        { "name": "modelName", "type": "string" },
        { "name": "modelVersion", "type": "int" },
        { "name": "requestTimestamp", "type": "long" },
        { "name": "responseHttpCode", "type": "int" },
        { "name": "inferenceId", "type": "string" },
        { "name": "messageType", "type": "string" },
        { "name": "payload", "type": "string" }
    ],
    "name": "inferencelog",
    "type": "record"
}
