Configure LDAP/Kerberos group to project mapping#

Introduction#

A group-to-project mapping lets you automatically add all members of an LDAP group to a project, eliminating the need to add each user individually. To create a mapping, you simply select the LDAP group, choose the project it should be linked to, and assign the role that its members will have within that project.

Once a mapping is created, project membership is controlled through LDAP group membership. Any updates made to the LDAP group—such as adding or removing users—will automatically be reflected in Hopsworks. For example, if a user is removed from the LDAP group, they will also be removed from the corresponding project.

Prerequisites#

  1. A server configured with LDAP or Kerberos. See Server Configuration for Kerberos and Server Configuration for LDAP for instructions on how to do this.
  2. LDAP group mapping sync enabled. This can be done by setting the variable ldap_group_mapping_sync_enabled=true. See Cluster Configuration on how to change variable values in Hopsworks.

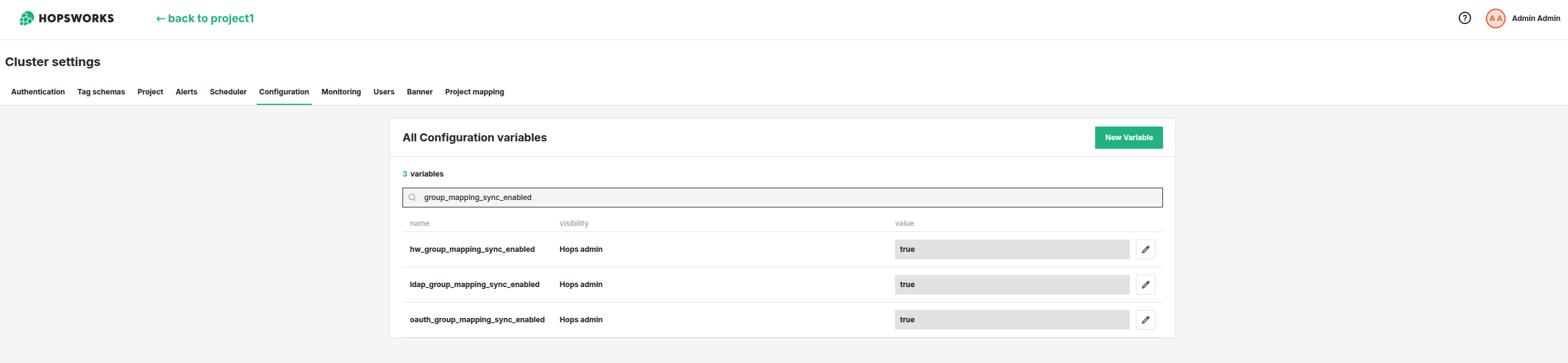

Enable ldap mapping
Enable ldap mapping

If you can not find the variable ldap_group_mapping_sync_enabled create it by clicking on New variable.

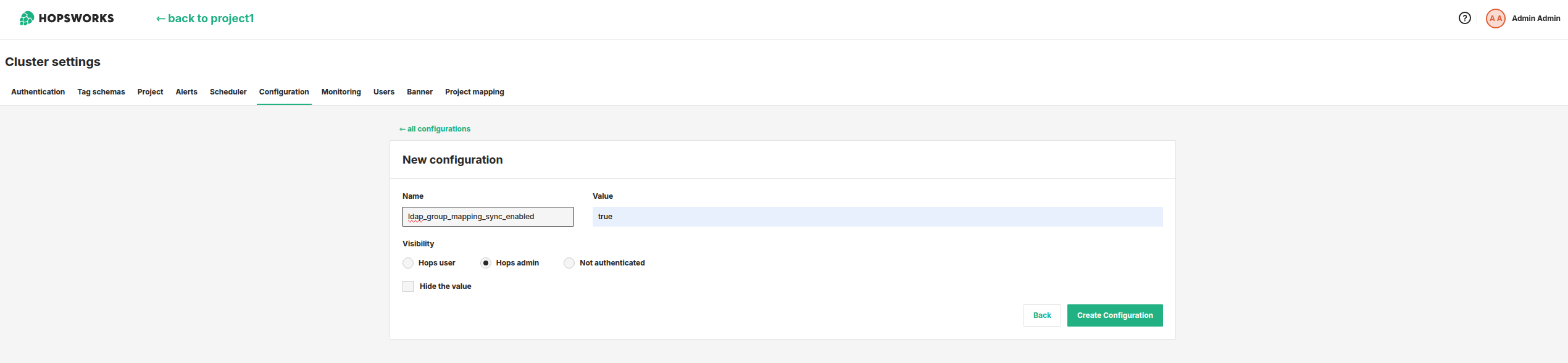

Create ldap mapping enabled variable
Create ldap mapping enabled variable

Step 1: Create a mapping#

To create a mapping go to Cluster Settings by clicking on your name in the top right corner of the navigation bar and choosing Cluster Settings from the dropdown menu. In the Project mapping tab, you can create a new mapping by clicking on Create new mapping.

Project mapping tab
Project mapping

This will take you to the create mapping page shown below

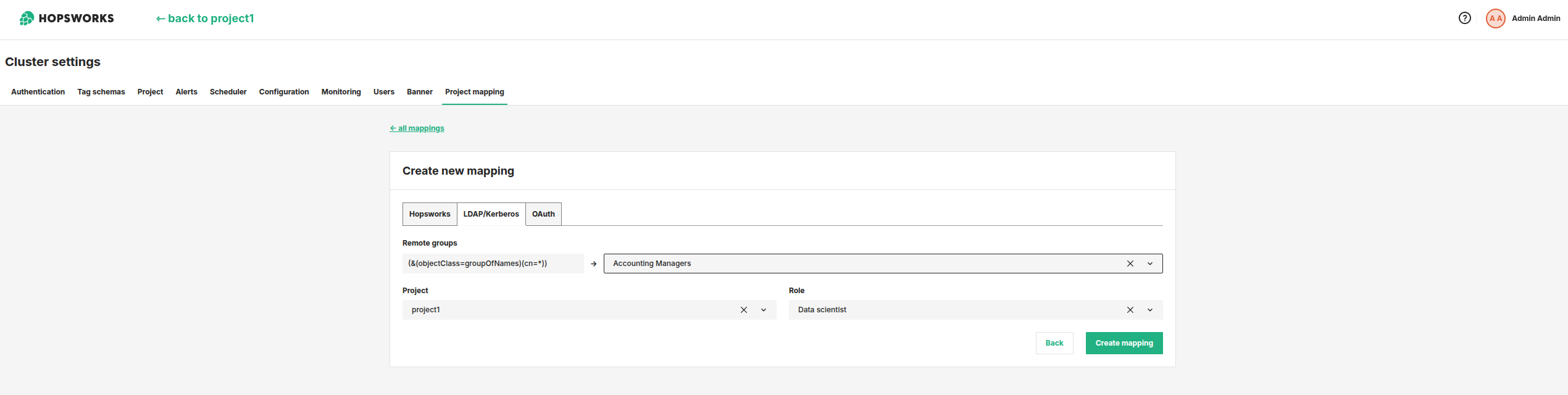

Create mapping
Create mapping

Here you can choose from your LDAP groups and map them to a project from the Project drop down list. You can also choose the Project role users will be assigned when they are added to the project.

Finally, click on Create mapping and go back to mappings. You should see the newly created mapping(s) as shown below.

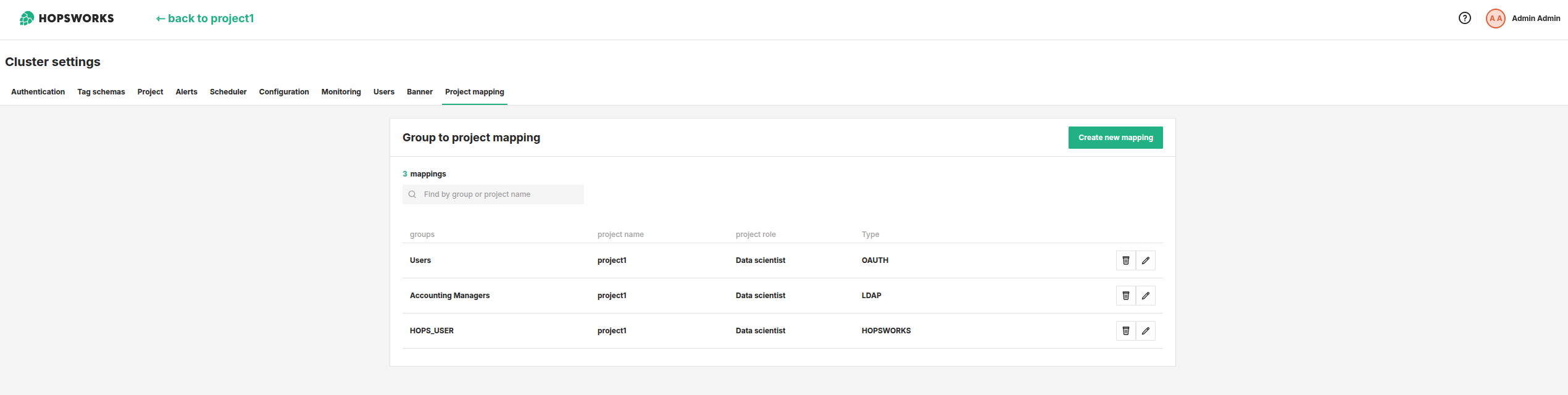

Project mappings
Project mappings

Note

If there are no groups in the Remote group drop down list check if ldap_groups_search_filter is correct by using the value in ldapsearch replacing %c with *, as shown in the example below.

ldapsearch -LLL -H ldap:/// -b '<base dn>' -D '<user dn>' -w <password> '(&(objectClass=groupOfNames)(cn=*))'

This should return all the groups in your LDAP.

See Cluster Configuration on how to find and update the value of this variable.

Step 2: Edit a mapping#

From the list of mappings click on the edit button (). This will open a popup that will allow you to change the remote group, project name, and project role of a mapping.

Edit mapping
Edit mapping

Warning

Updating a mapping's remote group or project name will remove all members of the previous group from the project.

Step 3: Delete a mapping#

To delete a mapping click on the delete button.

Warning

Deleting a mapping will remove all members of that group from the project.

Step 4: Configure sync interval#

After configuring all the group mappings users will be added to or removed from the projects in the mapping when they login to Hopsworks. It is also possible to synchronize mappings without requiring users to log out. This can be done by setting ldap_group_mapping_sync_interval to an interval greater or equal to 2 minutes. If ldap_group_mapping_sync_interval is set group mapping sync will run periodically based on the interval and add or remove users from projects.
