How-To set up a BigQuery Data Source#

Introduction#

A BigQuery data source provides integration to Google Cloud BigQuery. BigQuery is Google Cloud's managed data warehouse supporting that lets you run analytics and execute SQL queries over large scale data. Such data warehouses are often the source of raw data for feature engineering pipelines.

In this guide, you will configure a Data Source in Hopsworks to connect to your BigQuery project by saving the necessary information. When you're finished, you'll be able to execute queries and read results of BigQuery using Spark through HSFS APIs.

The data source uses the Google spark-bigquery-connector behind the scenes. To read more about the spark connector, like the spark options or usage, check Apache Spark SQL connector for Google BigQuery.

Note

Currently, it is only possible to create data sources in the Hopsworks UI. You cannot create a data source programmatically.

Prerequisites#

Before you begin this guide you'll need to retrieve the following information about your GCP account:

  • BigQuery Project: You need a BigQuery project, dataset and table created and have read access to it. Or, if you wish to query a public dataset you need its corresponding details.
  • Authentication Method: Authentication to GCP account is handled by uploading the JSON keyfile for service account to the Hopsworks Project. You will need to create this JSON keyfile from GCP. For more information on service accounts and creating keyfile in GCP, read Google Cloud documentation.

Note

To read data, the BigQuery service account user needs permission to `create read sesssion` which is available in **BigQuery Admin role**.

Creation in the UI#

Step 1: Set up new Data Source#

Head to the Data Source View on Hopsworks (1) and set up a new data source (2).

Data Source Creation

The Data Source View in the User Interface

Step 2: Enter source details#

Enter the details for your BigQuery storage. Start by giving it a unique name and an optional description.

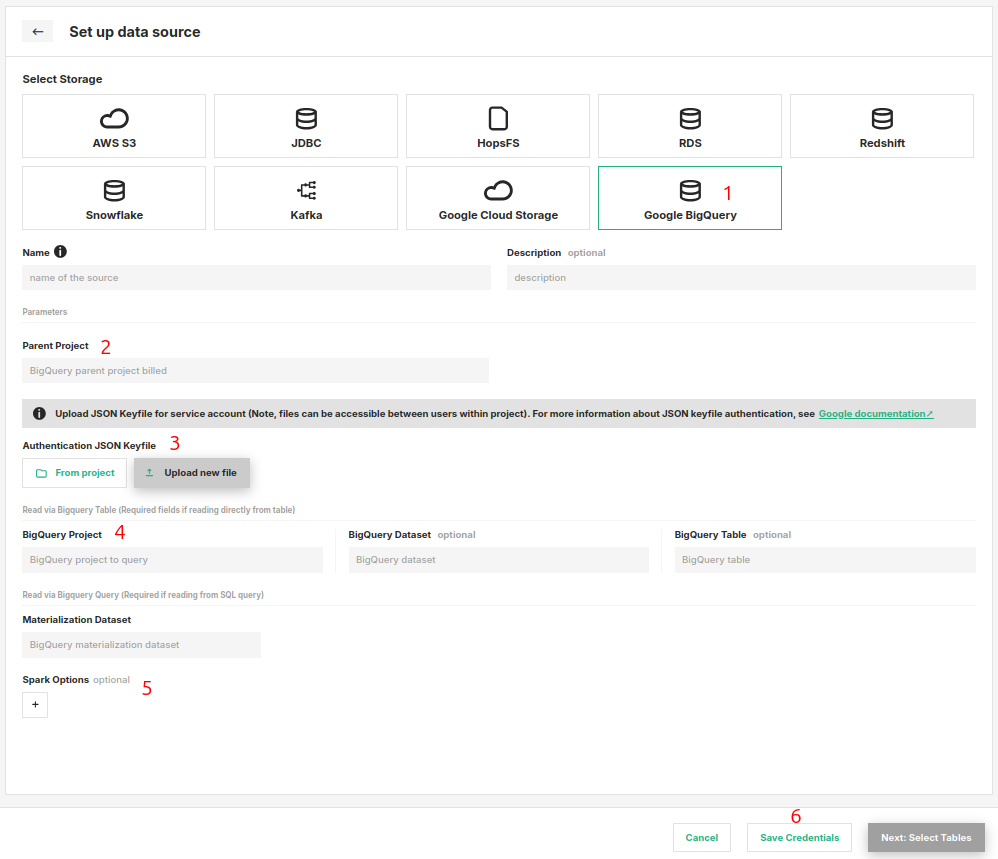

BigQuery Creation

BigQuery Creation Form
  1. Select "Google BigQuery" as the storage.
  2. Next, set the name of the parent BigQuery project. This is used for billing by GCP.
  3. Authentication: Here you should upload your JSON keyfile for service account used for authentication. You can choose to either upload from your local using Upload new file or choose an existing file within project using From Project.
  4. Read Options: In the UI set the below fields,
    1. BigQuery Project: The BigQuery project to read
    2. BigQuery Dataset: The dataset of the table (Optional)
    3. BigQuery Table: The table to read (Optional)

Note

Materialization Dataset: Temporary dataset used by BigQuery for writing. It must be set to a dataset where the GCP user has table creation permission. The queried table must be in the same location as the materializationDataset (e.g 'EU' or 'US'). Also, if a table in the SQL statement is from project other than the parentProject then use the fully qualified table name i.e. [project].[dataset].[table] (Read more details from Google documentation on usage of query for BigQuery spark connector here).

  1. Spark Options: Optionally, you can set additional spark options using the Key - Value pairs.
  2. Click on "Save Credentials".

Next Steps#

Move on to the usage guide for data sources to see how you can use your newly created BigQuery connector.
