How-To set up a HopsFS Data Source#

Introduction#

HopsFS is a HDFS-compatible filesystem on AWS/Azure/on-premises for data analytics. HopsFS stores its data on object storage in the cloud (S3 in AWs and Blob storage on Azure) and on commodity servers on-premises, ensuring low-cost storage, high availability, and disaster recovery. In Hopsworks, you can access HopsFS natively in programs (Spark, TensorFlow, etc) without the need to define a Data Source. By default, every Project has a Data Source for Training Datasets. When you create training datasets from features in the Feature Store the HopsFS connector is the default Data Source. However, if you want to output data to a different dataset, you can define a new Data Source for that dataset.

In this guide, you will configure a HopsFS Data Source in Hopsworks which points at a different directory on the file system than the Training Datasets directory. When you're finished, you'll be able to write training data to different locations in your cluster through HSFS APIs.

Prerequisites#

Before you begin this guide you'll need to identify a directory on the filesystem of Hopsworks, to which you want to point the Data Source that you are going to create.

Creation in the UI#

Step 1: Set up new Data Source#

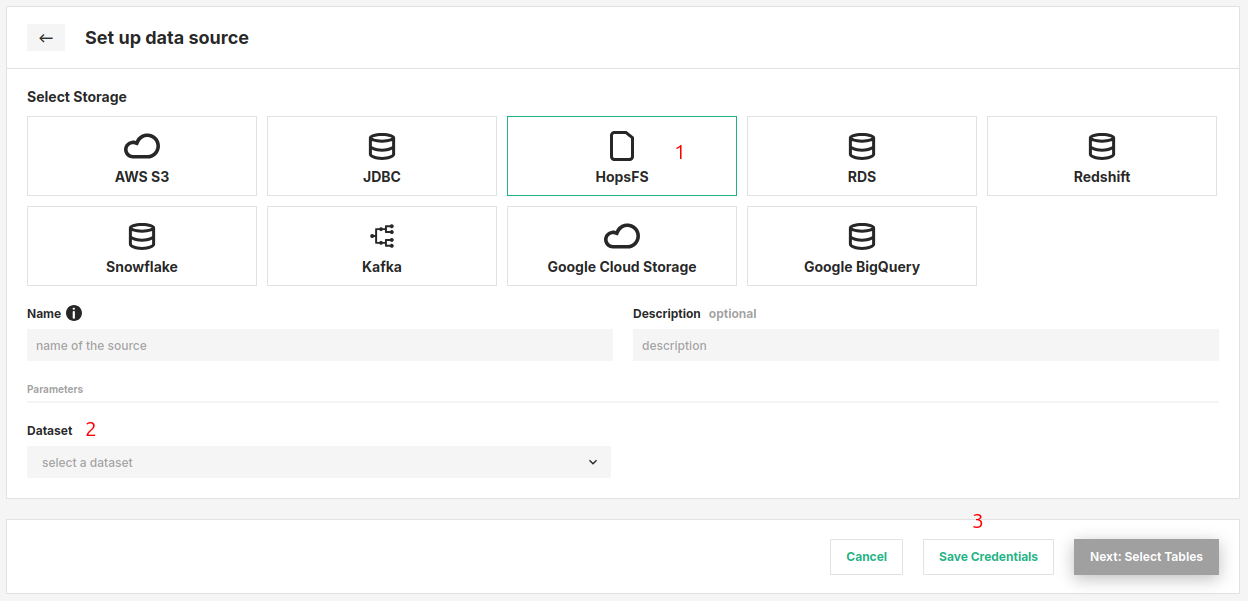

Head to the Data Source View on Hopsworks (1) and set up a new data source (2).

Step 2: Enter HopsFS Settings#

Enter the details for your HopsFS connector. Start by giving it a name and an optional description.

1. Select "HopsFS" as the storage.
2. Select the top-level dataset to point the connector to.
3. Click on "Save Credentials".

Next Steps#

Move on to the usage guide for data sources to see how you can use your newly created HopsFS connector.
