How-To set up an Amazon RDS JDBC Data Source#

Introduction#

Amazon RDS (Relational Database Service) is a managed relational database service that supports several popular database engines, such as MySQL, PostgreSQL, Oracle, and Microsoft SQL Server. Using JDBC connections, you can query and update data in your RDS database from Hopsworks.

In this guide, you will configure a Data Source in Hopsworks to securely store the authentication information needed to set up a JDBC connection to your Amazon RDS instance. Once configured, you will be able to query your RDS database.

Note

Currently, it is only possible to create data sources in the Hopsworks UI. You cannot create a data source programmatically.

Prerequisites#

Before you begin, ensure you have the following information from your Amazon RDS instance:

  • Host: You can find the endpoint for your RDS instance in the AWS Console.

    1. Go to the AWS Console → Aurora and RDS
    2. Click on your DB instance.
    3. Under Connectivity & security, you'll find the endpoint

    Example:

    mydb.abcdefg1234.us-west-2.rds.amazonaws.com

    • Database: You can specify which database to use

    • Port: Provide the port to connect to

    • Username and Password: Obtain the username and password for your RDS database with the necessary permissions to access the required tables.

Creation in the UI#

Step 1: Set up a new Data Source#

Head to the Data Source View on Hopsworks (1) and set up a new data source (2).

Data Source Creation

The Data Source View in the User Interface

Step 2: Enter RDS Settings#

Enter the details for your Amazon RDS database.

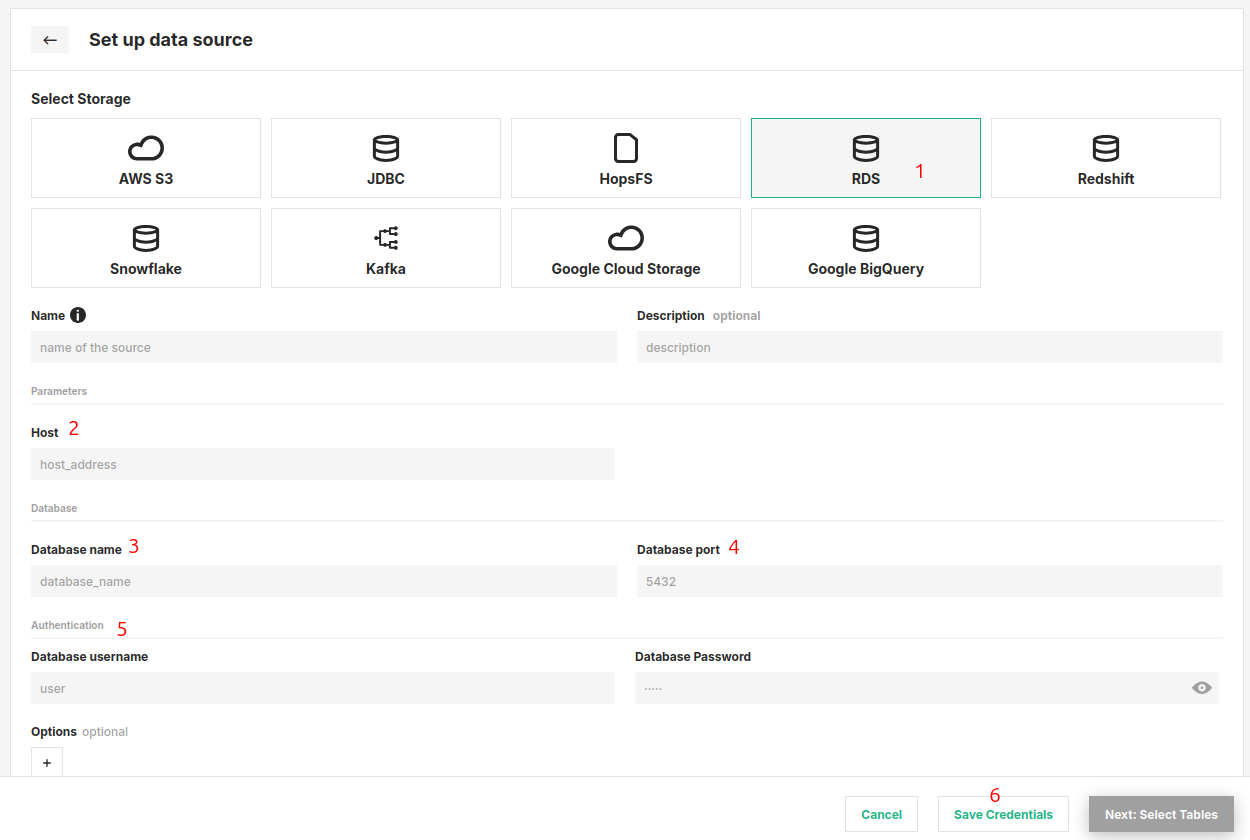

RDS Connector Creation

RDS Connector Creation Form
  1. Select "RDS" as the storage.
  2. Paste the Host details.
  3. Enter the database name.
  4. Specify which port to use.
  5. Provide the username and password.
  6. Click on "Save Credentials".

Next Steps#

Proceed to the usage guide for data sources to learn how to use your newly created connector.
